| T220C280W07S07-E |
| |
|
|
| Series: AC170V-265V;300mA;7*1W |
| Types: E27，GU10,7*1W |
Description: *Digital power supply
*Constant current output. ensure the application safety of high power LED
*Universal input voltage:220v. Isolated power supply, isolated voltage 3000V
*Safety Certification passed, isolated voltage up to 3750V
*Short circuit protection,open circuit protection,Thunder protection
*Applicable for all 7*1W LED(include red and yellow)
*Applicable for multi-chip LED
*Samll size:27mm*17mm. China and US patent owned

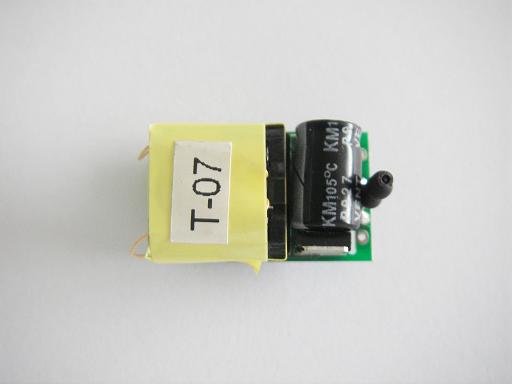

T220C280W07S07 driver module is specially designed for LED lamps of E26、E27、GU10，it is small enough to install in normal lamps（E27；E26）directly and can drive single 3W high power (Sharp LEDs) with all kinds of color. The model is designed with rectangle profile and lower temperature rise so to ensure longer working time。The module designed with over-current projection can project the LED in the abnormal application.
|
|
|
T220C280W07S07-E.PDF
|
| |
Technical parameter
|
|
Item |
Parameter |
|
Input |
（V）Voltage range(V) |
AC 180V-265V |
|
（mA）(input current(MA) |
80mA Max |
|
（%）Efficiency(%) |
74% |
|
Input current when open circuit |
<1mA |
|
Input current when short circuit |
<1mA |
|
Power factor |
>0.63 |
|
output |
（V）Output voltage(V) |
DC=21V~23V |
|
（mA）Rated current (mA) |
280mA±5% |
|
（mA）Instantaneous current |
500mA(500nS) |
|
Others |
（℃）Work Temperature |
0℃ - +85℃ |
|
（%）Humidity |
20%-95%RH |
|
（mm）Dimension（length*width） |
27mm*17mm*12.5mm |
|
isolated voltage |
3750V(10S) |
|
Over voltage protection |
Yes |
|
Open circuit protection |
Yes |
|
Short circuit protection |
Yes |
|
Thunder protection |
Yes |
|
switch interval |
0.05S |
|
Life |
20000Hours |
|
（g）Weight |
10g |
Product use: This module has four leadlines, two black are input lines jointing with alternating current, red/blue are output lines, red line jointing with positive of high power LED, blue line jointing with negative of high power LED.
|
| |
|
