| T12C300W03S03-E |
| |
|
|
| Series: AC11.5V-14V;300mA;3*1W |
| Types: E27,GU10,3*1W |
Description: *Alternating current AC12V; DC12V.
*Constant current output, could ensure the safe of high power LED.
*Use electronics transformer, it isn’t flicker.
*Passed CE attestation; Passed EMC testing.
*Long life design, high reliability.
*Small volume 13mm*13mm.
*Could drive various color’s high power LED.
T12C300W03S03 driver module is specialized design for LED lamps of MR16，it could be installed in lamps of MR16,and could drive three 1W high power LED (Vf=10V; I=300mA).The driver is 13*13mm structure，temperature rising lower, could stand long-time working.The product use pulse current function. This module own over-current protection，in unusual condition could protect LED.
|
|
|
T12C300W03S03-E.PDF
|
| |
|
Product model：T12C300W03S03 Technology parameter: testing condition：(AC12V；60Hz )
|
|
Item |
Parameter |
|
Input |
Voltage range（V） |
AC 11.5V-14V |
|
Input current（mA） |
250mA Max |
|
Efficiency（%） |
75% |
|
Output |
Output voltage（V） |
DC 10.0V |
|
Constant current and precision（mA） |
300mA±10% |
|
Pulse current（mA） |
400Ma(500ns) |
|
Others |
Temperature（℃） |
-10℃ - +85℃ |
|
Humidity（%） |
20%-95%RH |
|
Dimension（length*width）（mm） |
13mm X 13mm |
|
Weight（g） |
1.7g |

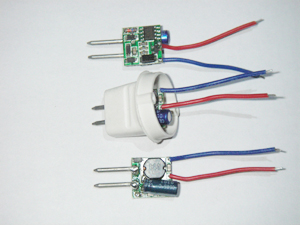

Product use: This module has four ports, two silver are input ports jointing with alternating current 12V, red/blue are output ports, red one jointing with positive of high power LED, blue one jointing with negative of high power LED.
|
| |
|
