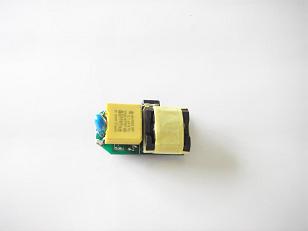

DP220C330W03S03 driver module is specially designed for LED lamps of E26、E27、GU10，it is small enough to install in normal lamps（E27；E26）directly and can drive three 1W high power (Sharp LEDs) with all kind of color. The model is designed with rectangle profile and lower temperature rise so to ensure longer working time.The module designed with over-current projection can project the LED in the abnormal application.
Technical parameter
|
|
Item |
Parameter |
|
Input |
（V）Voltage range(V) |
AC 170V-265V |
|
（mA）(input current(MA) |
20mA Max |
|
（%）Efficiency(%) |
80% |
|
Input current when open circuit |
<1mA |
|
Input current when short circuit |
<1mA |
|
Power factor |
>0.98 |
|
output |
（V）Output voltage(V) |
DC=5V~13V |
|
Start current |
350mA |
|
（mA）Rated current (mA) |
330mA±5% |
|
（mA）Instantaneous current |
500mA(500nS) |
|
Others |
（℃）Work Temperature |
-40℃ - +85℃ |
|
（%）Humidity |
20%-95%RH |
|
（mm）Dimension（length*width） |
32mm*18mm*16mm |
|
isolated voltage |
3500V |
|
Over heated protection |
Yes |
|
Over voltage protection |
Yes |
|
Open circuit protection |
Yes |
|
Short circuit protection |
Yes |
|
Thunder protection |
Yes |
|
switch interval |
0.05S |
|
EMC |
EN55015 |
|
Life |
50000Hours |
|
|
（g）Weight |
10g |
Product use: This module has four leadlines, two black are input lines jointing with alternating current, red/blue are output lines, red line jointing with positive of high power LED, blue line jointing with negative of high power LED.
|
